Description Of Radioisotope Shield Fume Hood

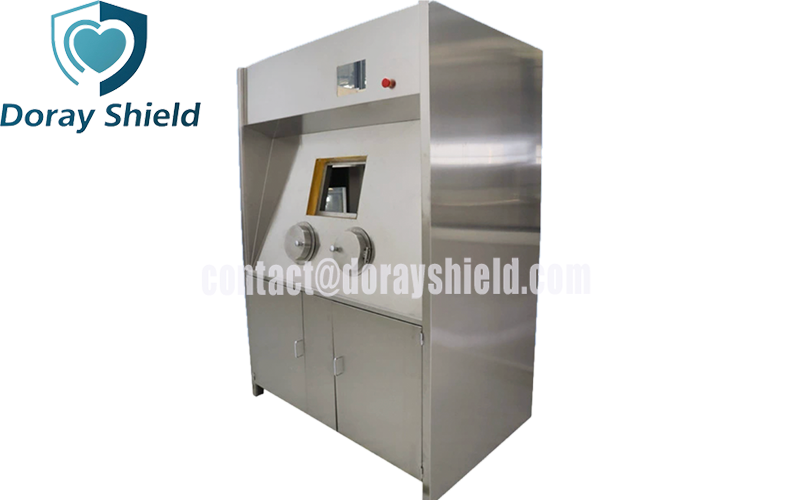

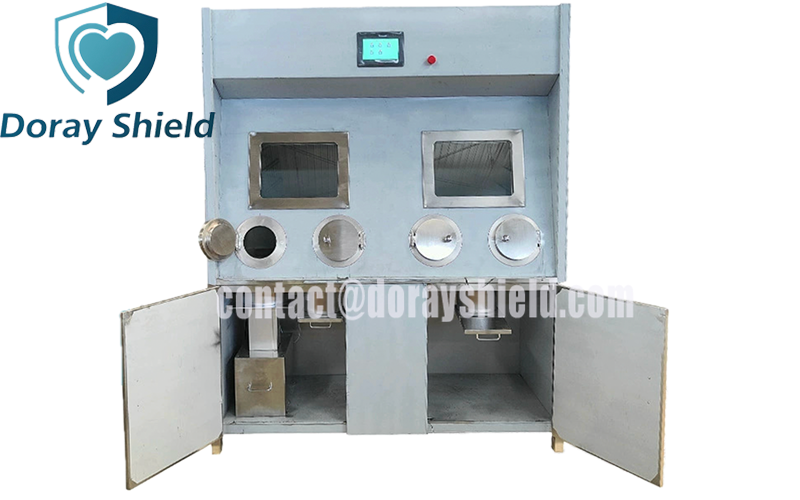

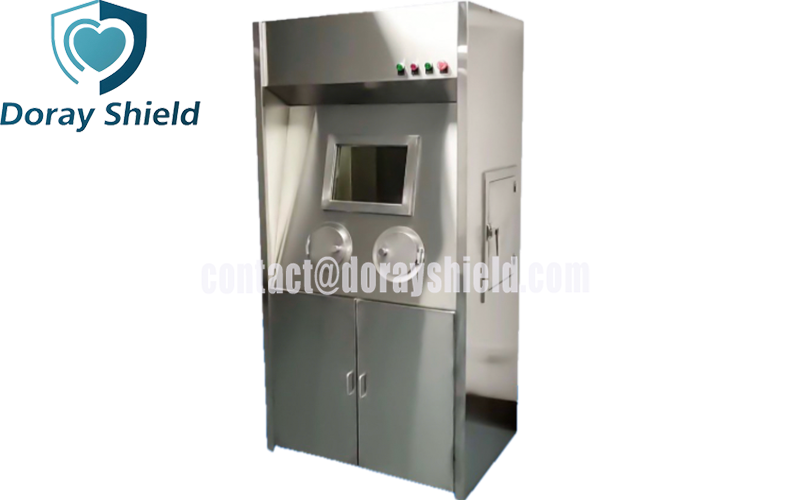

Radioisotope Shield Fume Hood is a professional drug dispensing equipment made of stainless steel lined with lead shielding material. It can safely and accurately perform unit dose dispensing operations on radioactive drugs in nuclear medicine departments. The equipment generally consists of three parts: ventilation area, working area, and load-bearing area. The ventilation area includes independent ventilation and filtration devices, and the working area contains an L screen with a lead glass observation window, an operation panel, a drug dispensing table, and a slide rail assembly that allows the L screen to move. The load-bearing area is a stainless steel frame with four lockable universal casters.

Features Of Radioisotope Shield Fume Hood

1. LED lighting with a panel for 4 power sockets

2. Support structure in AISI 304 stainless steel with a certain polishing treatment

3. An absolute filter and an activated carbon filter with a protective cover for the safe replacement operation

4. All sliding rails have the correct curve radius as required by the dispensing guide to guarantee the easiest cleaning conditions.

5. All joints are made by the TIG welding method, i.e., in a tungsten inert argon (gas) atmosphere, and then properly polished to obtain the best results of easy-to-clean surfaces.

Applications Of Radioisotope Shield Fume Hood

In radiochemistry laboratories, it is used to handle experimental operations of radioactive isotopes, such as dissolution, distillation, filtration, etc., to prevent the spread of radioactive contamination.

Provide a safe working environment for experimental personnel and reduce radiation exposure.

Specifications Of Radioisotope Shield Fume Hood
