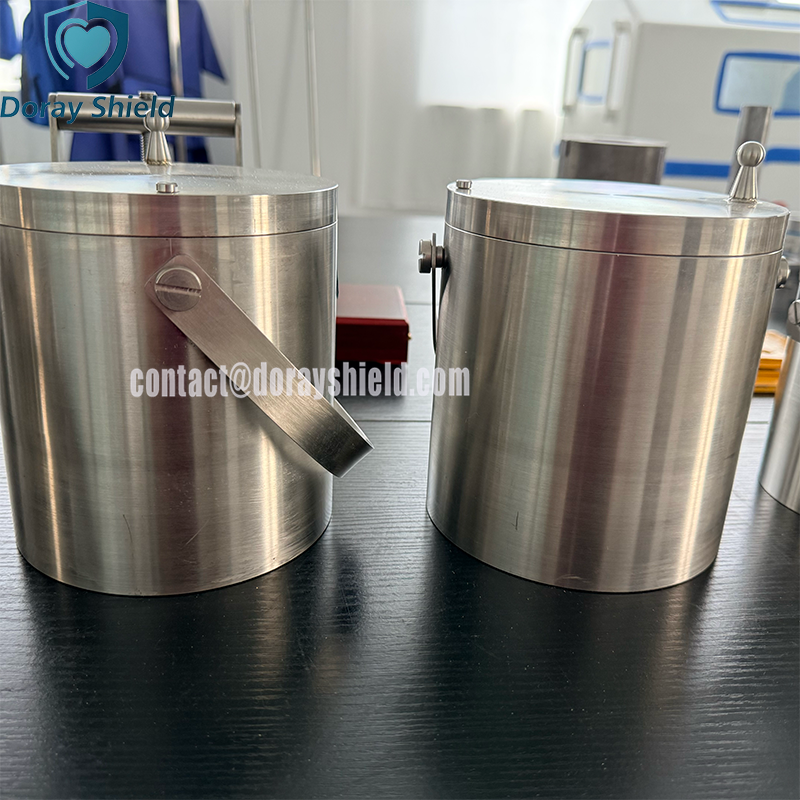

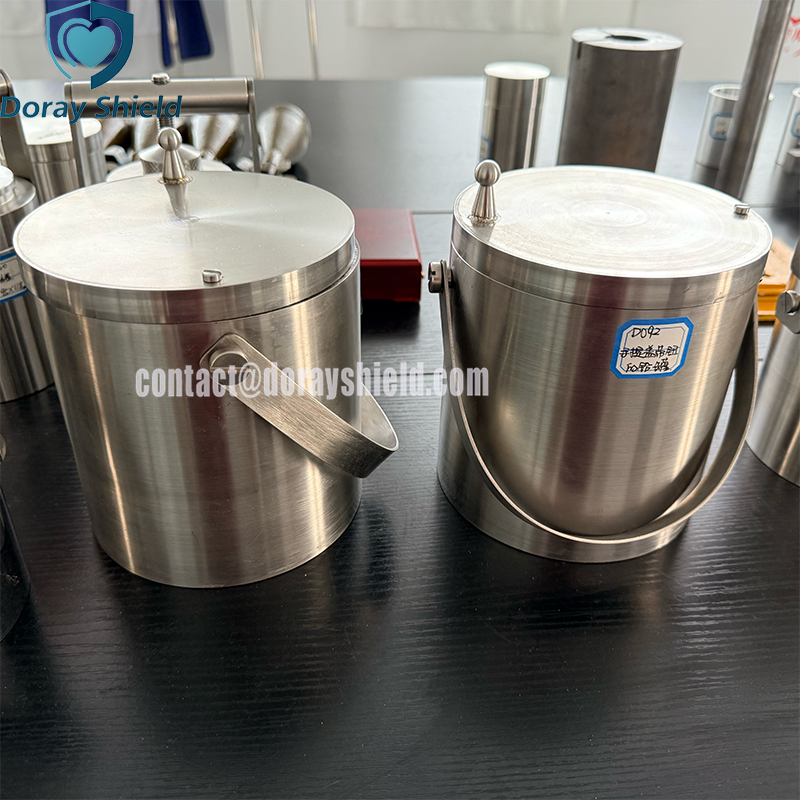

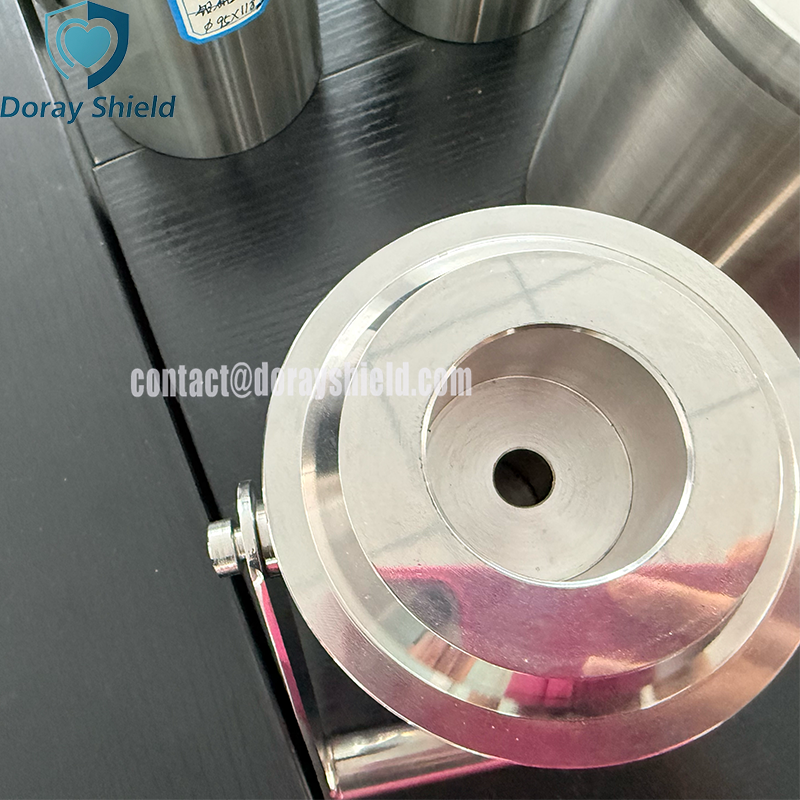

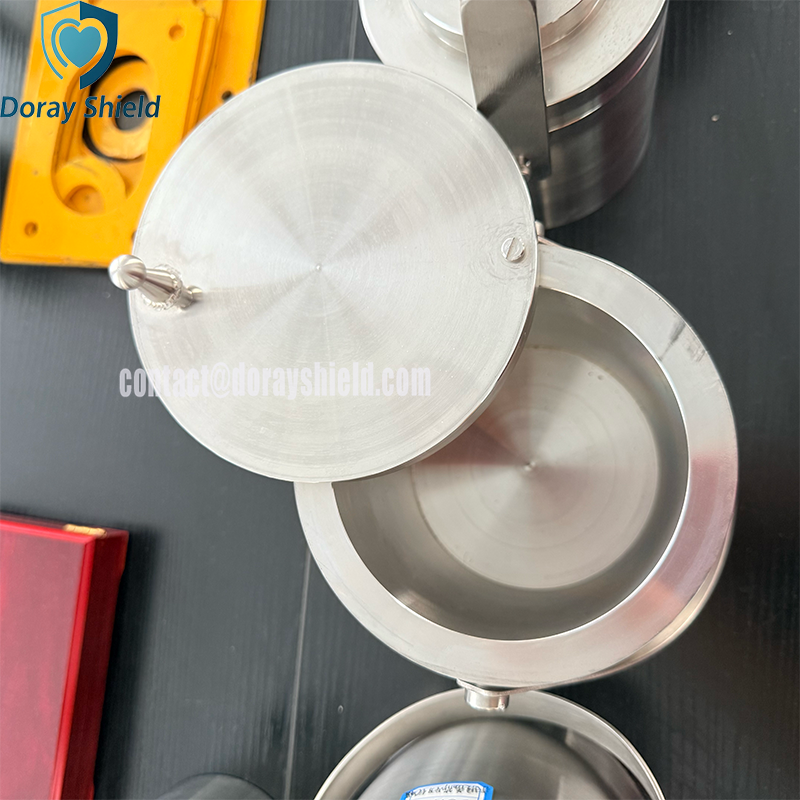

Description of Nuclear Medicine Lead Container

Nuclear medicine lead containers—often referred to in the industry as "lead boxes," "lead canisters," or "mobile fortresses"—are essential radiation protection devices used in nuclear medicine departments, radiotherapy suites, and isotope laboratories. They feature a "steel-encased lead" construction: the outer layer consists of thick-walled carbon steel or 304 medical-grade stainless steel, providing structural strength, impact resistance, and corrosion resistance, while the inner layer is filled with lead to provide radiation shielding. Their primary function is to leverage the high density of lead to effectively absorb and block ionizing radiation—such as gamma and X-rays—thereby providing a safe environment for the storage, transport, handling, and decay-in-storage of radiopharmaceuticals, radioactive sources, and waste. Serving as the final physical line of defense for radioactive materials once they leave fixed shielding facilities, these lead containers play a decisive role in safeguarding the occupational health of medical personnel, ensuring public safety, and maintaining environmental compliance.

Key Performance Indicators and Selection Guide

When selecting lead containers, focus on the following technical specifications:

Lead Equivalent

This is the primary indicator of shielding capability. Required thicknesses vary by radionuclide:

I-131: ≥3 mm Pb

Tc-99m (SPECT): ≥4–5 mm Pb

F-18 (PET-CT): ≥6–10 mm Pb

Structural Integrity

The inner lead layer should be formed as a single, seamless unit.

The lid must be fully encased in lead to prevent radiation leakage at the top, which could create a shielding blind spot.

Materials and Durability

The outer shell should ideally be made of 304 medical-grade stainless steel or cold-rolled, corrosion-resistant steel to ensure resistance to rust and impact.

Sealing gaskets should be made of radiation-resistant medical-grade silicone that withstands aging and corrosion from disinfectants.

Safety Features

Anti-theft locking mechanisms are recommended for units used for centralized temporary storage.

Smart models can integrate RFID, weighing capabilities, overflow alarms, and radiation dose monitoring to enable full-process traceability.

Specification of Nuclear Medicine Lead Container
