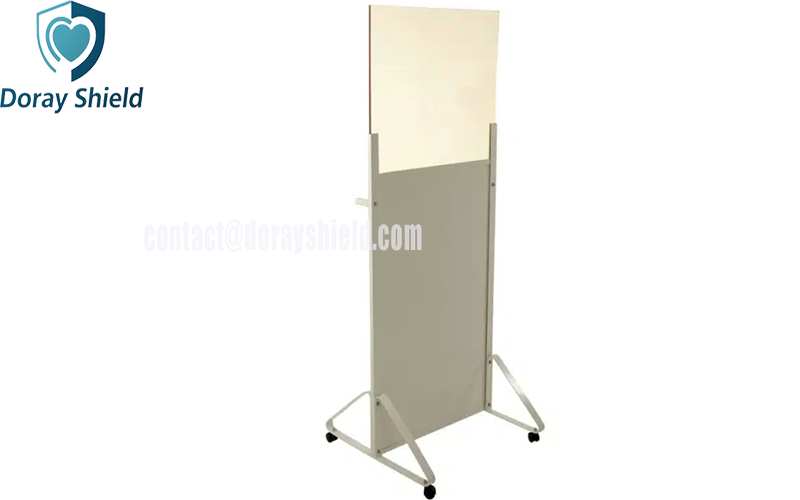

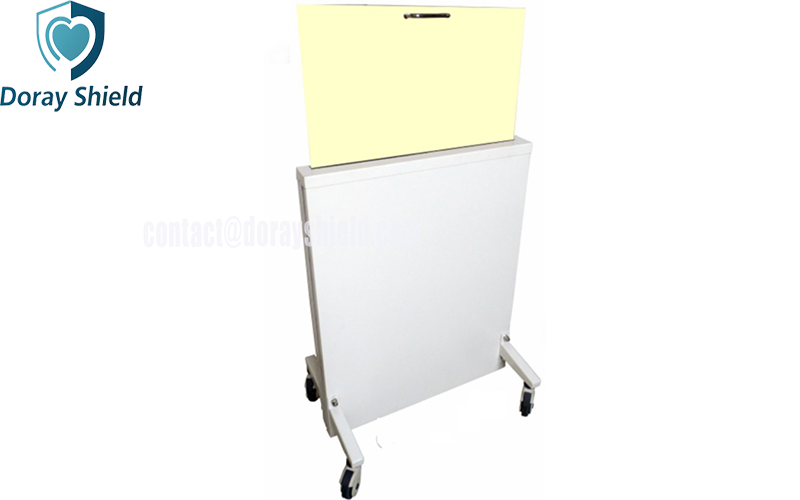

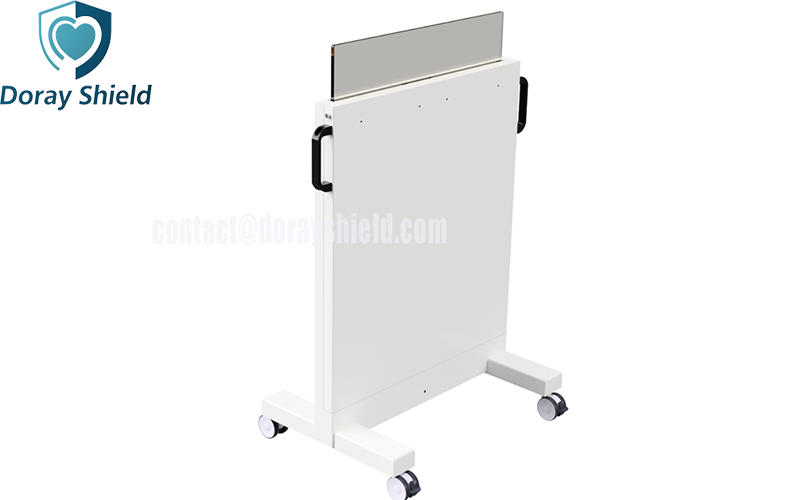

The Height-Adjustable Flexible Mobile X-Ray Shield is a portable radiation protection device specifically designed for use in medical radiology departments, interventional operating rooms, industrial non-destructive testing facilities, and scientific research environments. Its primary function is to provide immediate, deployable shielding against scattered radiation for medical personnel, patient companions, and other non-examined individuals, without interrupting clinical or operational workflows. Typically, it features a framework constructed from 304 stainless steel or high-strength aluminum alloy, ensuring both structural stability and corrosion resistance. Certain high-end models utilize magnesium alloy to further reduce the unit's overall weight. Equipped with four medical-grade swivel casters—which are silent, acid-resistant, dust-proof, and fitted with brakes—the device offers exceptional load-bearing capacity and smooth maneuverability. Compliant with safety standards, the unit is designed to remain stable and prevent tipping, even when tilted at an angle of 10 degrees. Height adjustment for the upper and lower shield sections is achieved through mechanical locking slots, return springs, or motorized lifting mechanisms, allowing for either stepless or stepped positioning. The adjustment range typically spans from 90 cm to over 180 cm, accommodating the operational requirements of adults, children, and various patient postures (such as sitting or lying down).
Lead Equivalent:
Transparent Section: Common specifications include 0.5mmPb, 0.6mmPb, 0.8mmPb, 1.0mmPb, and higher.
Opaque Section: Typically ranges from 1.0mmPb to 2.0mmPb.
Flexible Lead Curtain: Typically ranges from 0.5mmPb to 0.6mmPb.
Dimensions and Specifications:
Total Width: No less than 900mm (common sizes: 900mm, 1000mm, 1200mm).
Effective Height: No less than 1800mm (inclusive of the adjustment range).
Observation Window Area: The effective area is typically no less than 100mm × 150mm; high-end models can reach up to H: 900mm × W: 1200mm.
Optical Performance: The transparent section features a light transmittance of no less than 80% at a wavelength of 500nm, ensuring a clear field of view.
Stability: The unit's center of gravity is designed for optimal balance, allowing a single person to easily push, position, and lock the device in place. It complies with anti-tipping requirements stipulated in standards such as GB/T 20438.
Regular Inspections: Periodically inspect the casters for signs of wear, check the responsiveness of the brakes, and verify the stability of the height adjustment mechanism.
Surface Cleaning: Wipe down surfaces using a mild disinfectant; avoid using strong corrosive solvents, which may damage the surface coating or cause micro-cracks.
Avoid Impact: Although the unit possesses impact resistance, care should still be taken to prevent sharp objects from scratching the observation window or subjecting the frame to violent impacts.
Disposal: Once the product has reached the end of its service life, it must not be discarded indiscriminately; instead, contact a qualified agency for the proper recycling and disposal of lead-containing waste.
