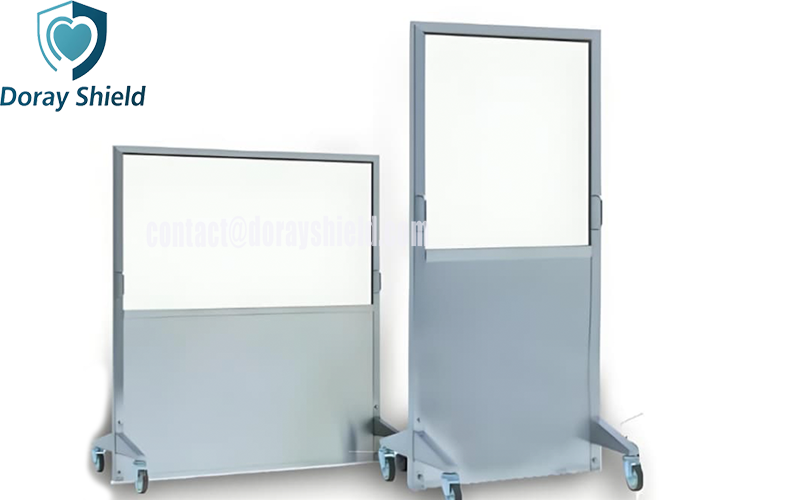

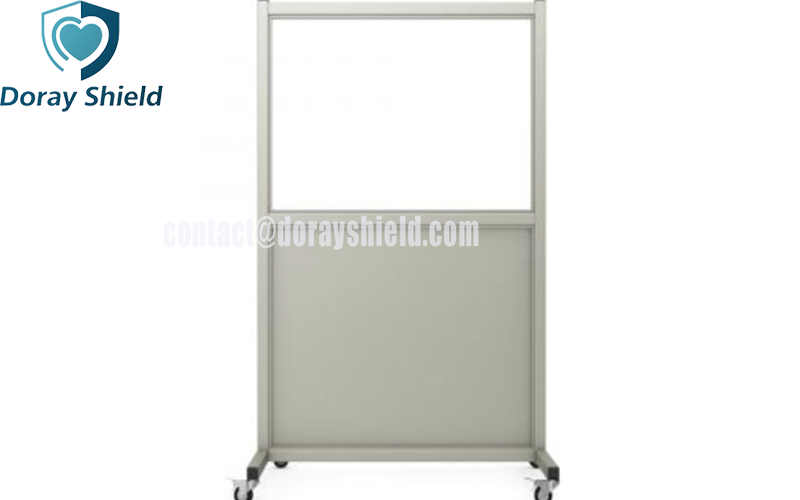

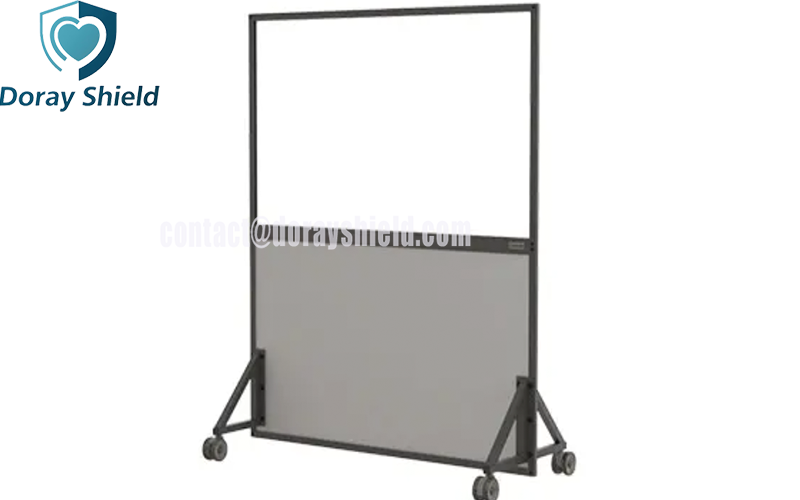

Description of Mobile X-ray Barrier With Panoramic Shield Glass Width 100cm

This mobile X-ray barrier with panoramic shield glass width 100cm is designed for modern medical imaging departments, emergency rooms, and mobile clinical settings, combining effective radiation protection with high mobility. It features a large lead-glass panel measuring 100 cm wide—significantly wider than the standard 60–80 cm viewing windows—which greatly expands the operator's field of view. This allows medical professionals to maintain a comprehensive view of the situation without frequently repositioning themselves while adjusting patient posture or monitoring equipment status, thereby significantly enhancing workflow efficiency. The system utilizes high-quality, optical-grade lead glass that has undergone precision double-sided polishing, resulting in exceptional light transmission. Its visual clarity rivals that of standard window glass, effectively reducing eye strain and ensuring keen observational capabilities during prolonged shifts. The glass contains high-density heavy metal oxides (such as lead and barium) capable of effectively absorbing and blocking X-rays and gamma rays. Depending on the configuration, it offers lead-equivalent protection ranging from 1 mmPb to 4 mmPb (or higher), fully meeting the shielding requirements for hospital DR rooms, CT suites, and interventional operating rooms. The base is equipped with high-strength, silent swivel casters that allow for 360-degree maneuverability. Two of the casters feature locking mechanisms to ensure the unit remains stable during imaging procedures, preventing positioning errors or safety hazards caused by accidental movement. The frame is constructed from premium aluminum alloy or stainless steel, ensuring structural durability while keeping the overall weight manageable for single-person operation. The surface is treated to be corrosion-resistant and easy to clean, complying with strict hospital hygiene and disinfection standards. A key highlight is the 100 cm-wide panoramic lead-glass viewing window, designed to provide healthcare staff with an expansive, unobstructed view while ensuring the operating area adheres to rigorous international radiation safety standards. This product not only addresses the lack of flexibility inherent in traditional fixed shielding installations but also enhances clinical efficiency and safety through optimized ergonomics and advanced material technology.

Specification of Mobile X-ray Barrier With Panoramic Shield Glass Width 100cm

Maximum height: 1900mm (height from ground: 80mm)

Minimum height: 1150mm (upper screen width 700mm)

Width: 881mm

Depth: 522mm

Packing Method: Wooden crate

Packing Dimension: 120 x 119 x 22cm

Gross weight: 75 kg

Assembly Required
