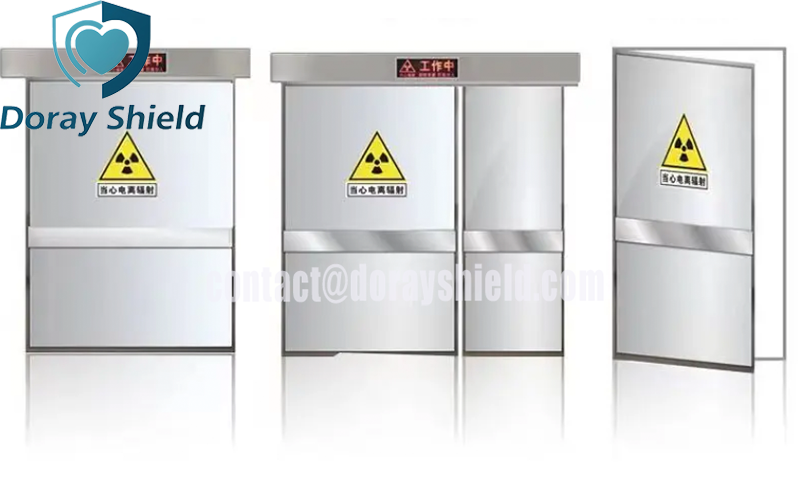

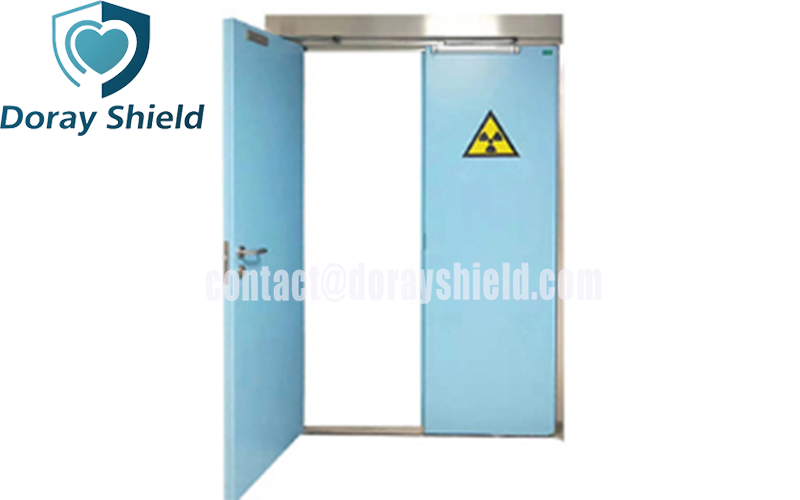

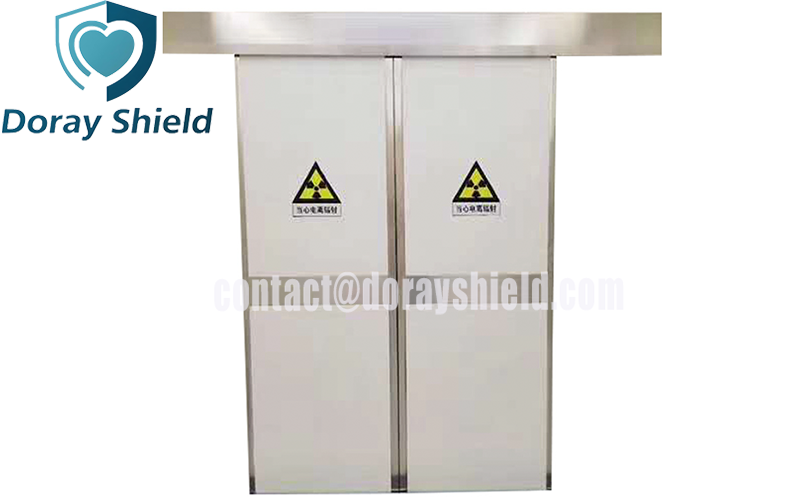

Description Of Radiation Shielded Swing Door

Radiation Shielded Swing Door is a manual sliding door made of lead shielding material used for protection in the field of nuclear medicine. It can protect the health and safety of workers and others, and the attenuation rate of high-energy ionizing radiation reaches more than 85%. Radiation Shielded Swing Door is specially developed for operating rooms with X-ray equipment, PET examination rooms, cancer treatment radiation rooms, and rooms with radiation shielding requirements. It has a series of excellent characteristics such as corrosion resistance, impact resistance, high temperature resistance, easy installation, easy cleaning, convenient opening and closing, and long service life. All the door equipment we provide meets international quality standards and fire protection levels.

Features Of Radiation Shielded Swing Door

Continuous rotation mechanism: The frame or door body rotates at a constant speed around the central axis to achieve "shielding while irradiating" and reduce radiation dead angles.

Leak-free splicing: The door-shielding chamber interface adopts a curved surface, S surface, or stepped surface non-straight bite to prevent gap leakage.

High shielding lead core: Lead or lead-polyethylene composite is filled in the door leaf, and lead equivalent 1-5 mmPb is optional to meet X/γ and neutron protection.

Silent electric drive: Servo motor + worm gear/gear rack combination, stable and low noise operation, can be opened manually when power is off.

Airtight fresh air integration: The airtight strips around the door body maintain DIN EN 12207 level 4 sealing, and can be integrated with a fresh air system, taking into account both cleanliness and comfort.

Applications Of Radiation Shielded Swing Door

Medical: Linear accelerator, gamma knife, proton therapy room, as patient access and main shielding body.

Industrial: Industrial CT, flaw detection room, nuclear fuel reprocessing plant, rotating shielding door with automatic feeding line to achieve continuous production and protection.

Specifications Of Radiation Shielded Swing Door
