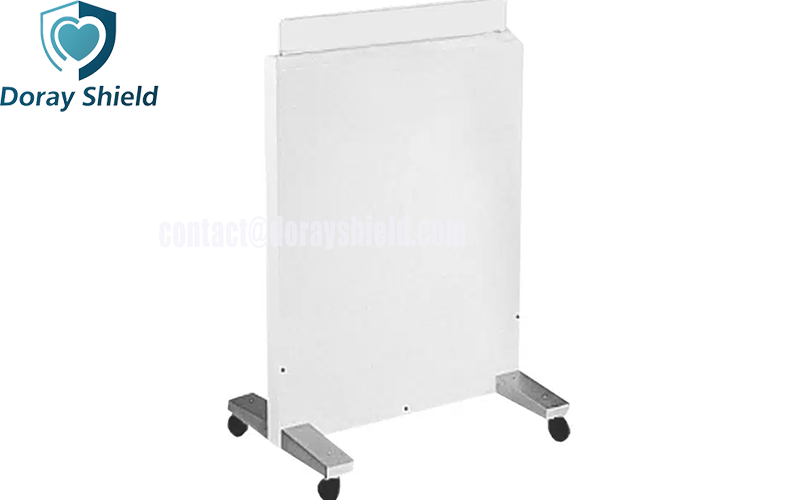

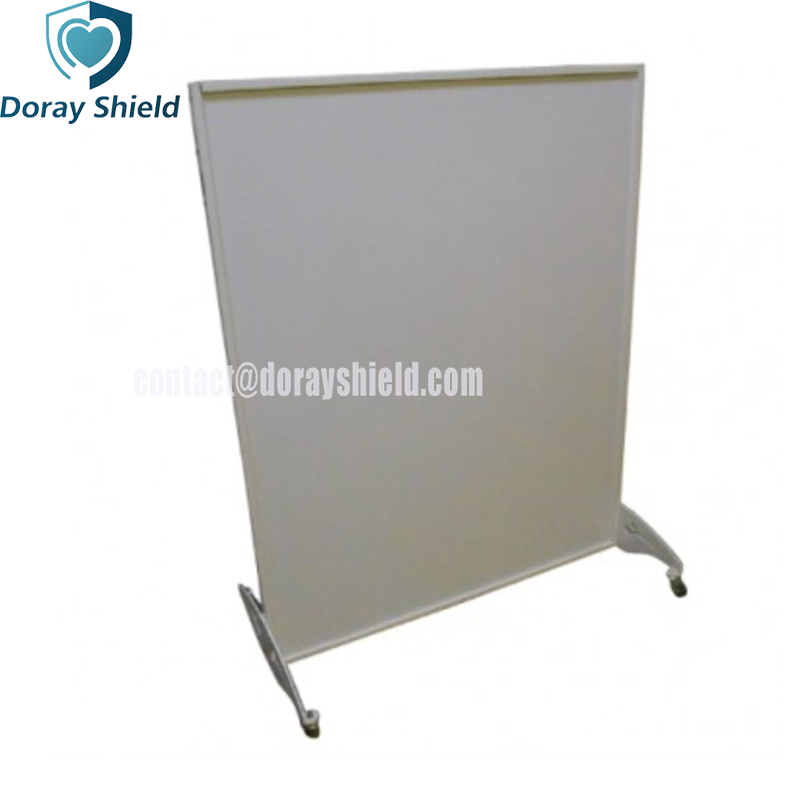

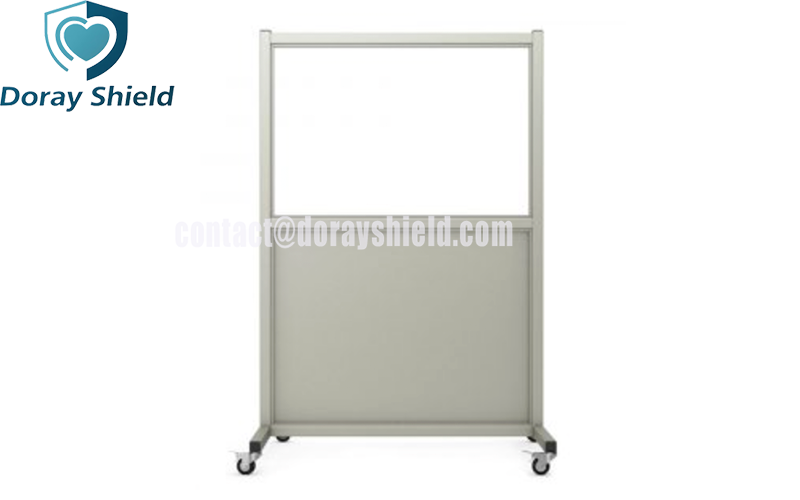

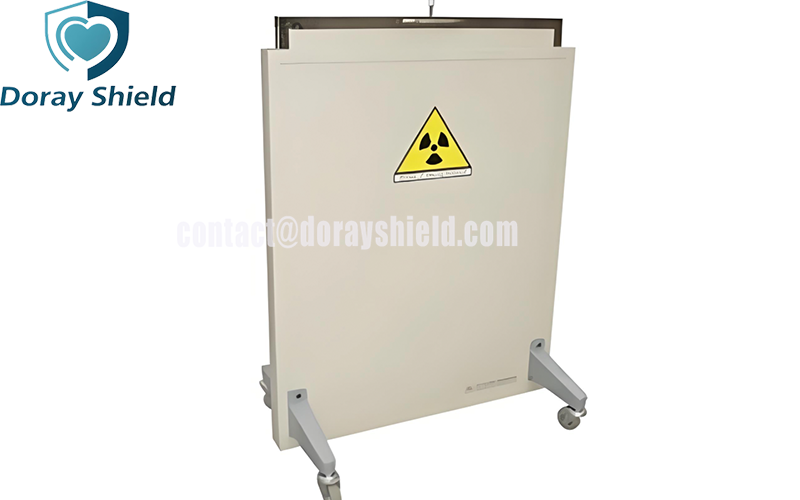

Description of Mobile Bed Lead Shield Barrier

The Mobile Bed Lead Shield Barrier is a piece of mobile radiation protection equipment specifically designed for medical radiological environments. Its main body is constructed from multi-layer composite lead sheets or high-density lead-equivalent materials, offering excellent radiation absorption capabilities. Depending on protection requirements, lead equivalence options typically range from 0.5 mm Pb to 2.0 mm Pb or higher. The transparent viewing window utilizes leaded glass, ensuring a clear field of view while effectively blocking radiation. Studies indicate that the proper use of mobile lead barriers can reduce radiation exposure for medical personnel by over 80% without increasing the radiation dose to patients. The unit is equipped with four stainless steel swivel casters—at least two of which feature locking mechanisms—allowing for easy maneuverability between areas such as catheterization labs and operating rooms, while ensuring stability once positioned. The frame features a reinforced design with high load-bearing capacity, capable of withstanding daily vibrations and minor external impacts without deformation that could compromise the protective seal. By combining the superior shielding performance of high-density lead materials with a flexible, mobile structure, the barrier provides effective protection against ionizing radiation (such as X-rays and gamma rays) for medical staff, patients, and bystanders. It is widely used in settings such as interventional radiology departments, catheterization labs, operating rooms, emergency departments, and intensive care units (ICUs); it is particularly effective at significantly reducing the risk of occupational exposure to scattered radiation for operators during bedside imaging or interventional procedures.

Specification of Mobile Bed Lead Shield Barrier

- Equivalent lead: 2 mm

- White laminated panel with core lead

- Lacquered steel frame

- Shield glass LxH 100x60cm or 100x80cm

- Shield glass Pb equivalent 2.1mm

- Width 100cm

- Height 198cm

- 4 castors, diameter 75mm without brake

- Wooden crate packing

- Weight with glass 60cm: 112Kg

- Weight with glass 80cm: 119Kg
