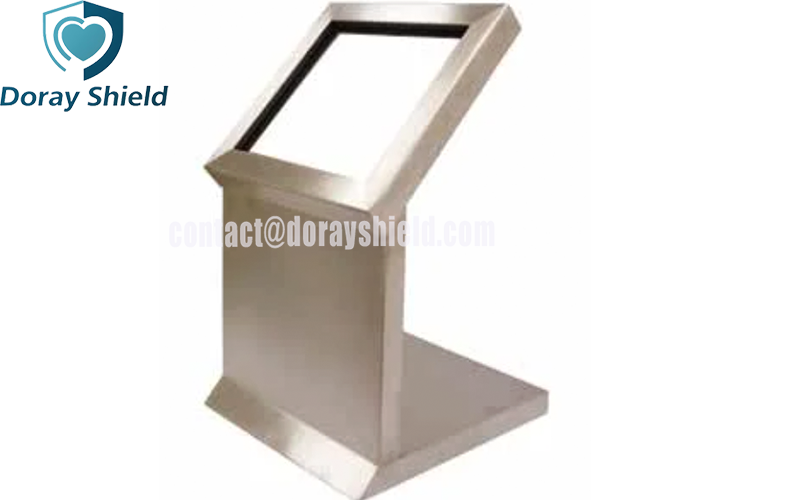

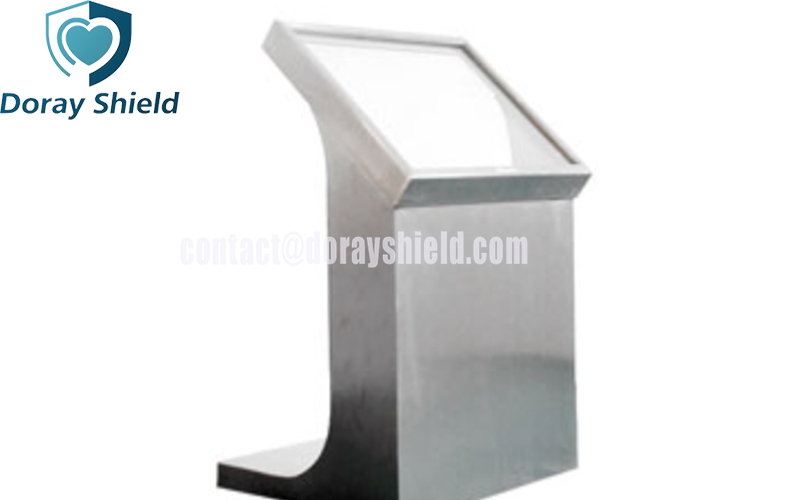

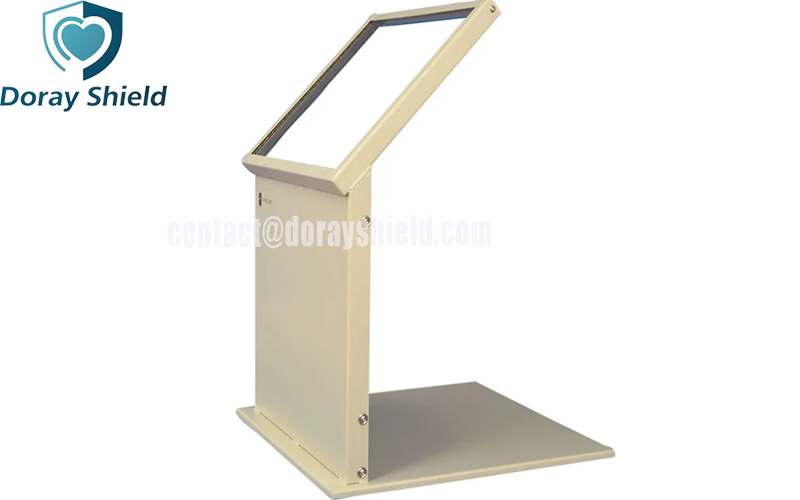

Description of Dose Dispensing L-Bench with Lead Glass

The Dose Dispensing L-Bench with Lead Glass is a high-precision shielded workstation designed specifically for nuclear medicine, radiology, and radiopharmaceutical preparation laboratories. It utilizes optical-grade ZF2/ZF3 series lead glass—containing high proportions of lead oxide (Pb3O4) and barium, with a density of 4.2–4.76 g/cm³—and offers lead equivalence specifications ranging from 0.5 mm Pb to 10 mm Pb. Shielding thickness can be customized based on the energy characteristics of specific radionuclides (such as Tc-99m, I-131, and F-18) to effectively block X-rays and gamma rays, ensuring operator radiation exposure remains well below international safety standards. The lead glass is an inorganic material with excellent fire resistance; it does not burn even in extreme heat, thereby enhancing overall laboratory safety. Featuring a double-sided optical polish, the glass offers light transmission exceeding 85%–90% and visual clarity comparable to standard window glass, with no color distortion or image aberration. Large-format customization is available (up to 1200 x 2600 mm). Combined with the open design of the L-shaped bench, this eliminates the visual obstruction caused by traditional, bulky lead bricks, allowing operators to monitor the dispensing process from all angles without blind spots and reducing the risk of operational errors. By integrating an ergonomic L-shaped layout with a high-performance lead glass shielding system, the equipment provides medical professionals with superior radiation protection, a clear field of view, and efficient workflow support during radioisotope dispensing, dose allocation, and drug preparation.

Specifications of Dose Dispensing L-Bench with Lead Glass
