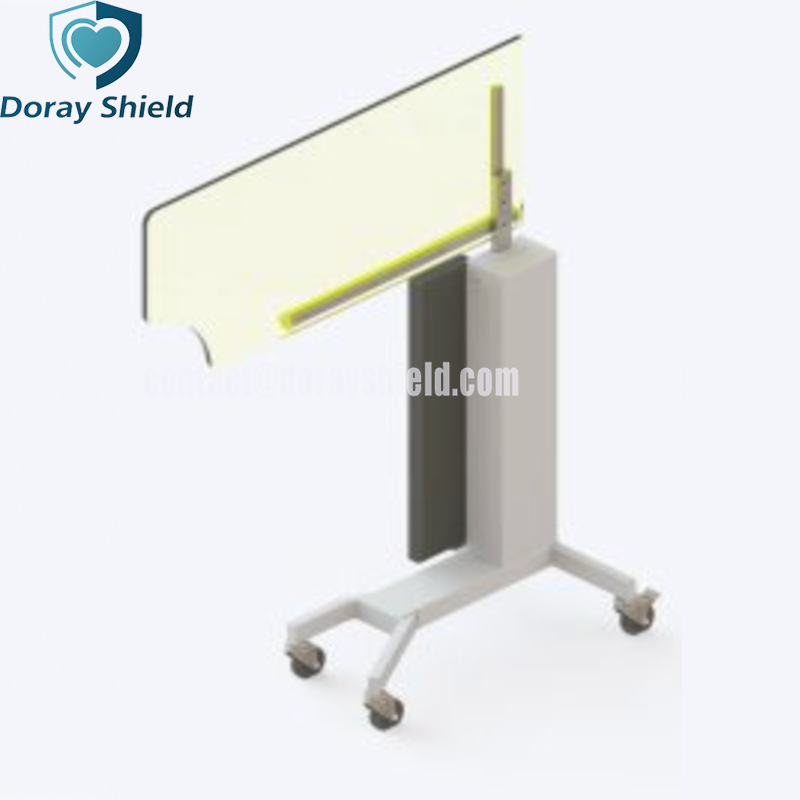

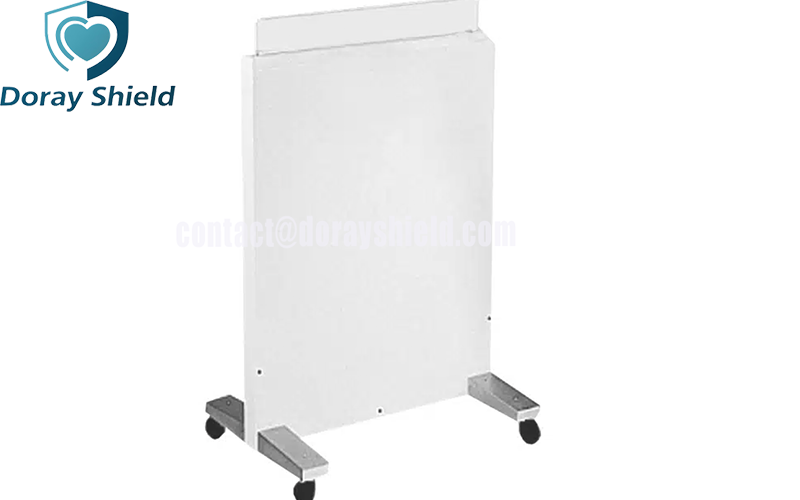

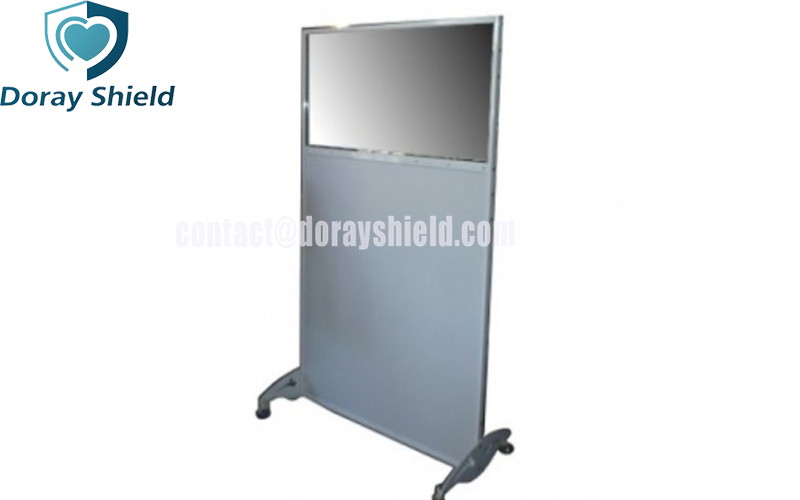

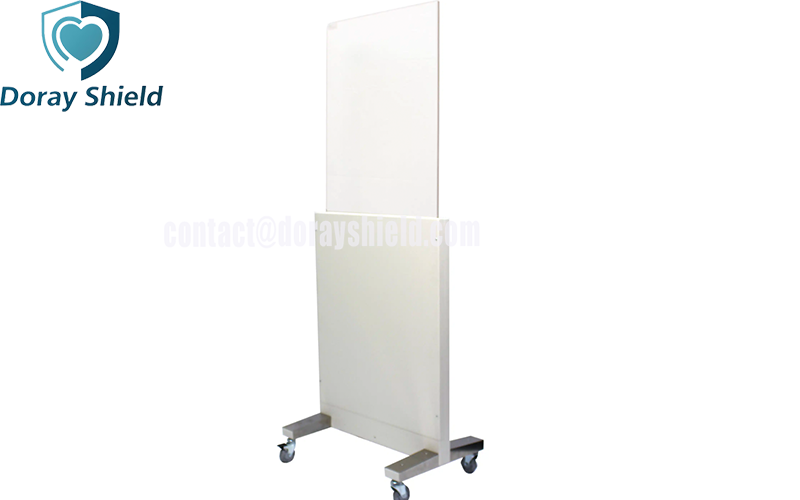

Description of Mobile Bed Lead Shield

The Mobile Bed Lead Shield is a portable radiation protection device designed specifically for medical radiation environments. It uses high-purity lead or new lightweight lead composite materials, with common lead equivalent specifications including 0.25mmPb, 0.35mmPb, and 0.5mmPb. It effectively blocks up to 99% of scattered X-rays, significantly reducing the radiation dose to the gonads and whole body of operators, and complies with international and domestic radiation safety standards such as GBZ 130-2020 and ISO 4037. It is designed to effectively absorb and block X-rays and gamma rays, providing reliable radiation safety protection for medical staff, patients, and surrounding personnel. Equipped with silent casters and a sturdy aluminum alloy or stainless steel frame, it slides smoothly and positions precisely. It eliminates the limitations of fixed lead walls, allowing for easy repositioning according to clinical needs, perfectly adapting to bedside radiography, temporary isolation areas, or treatment rooms with different layouts, saving space and optimizing workflow. This product combines robust protective performance with a flexible mobile design, making it widely applicable to radiology departments, operating rooms, emergency rooms, interventional treatment rooms (such as TIPS procedures), and industrial flaw detection scenarios.

Specification of Mobile Bed Lead Shield

1.5 mm Pb equivalent base

Dimensions: 29.9” (76 cm) Width x 41.7” (106 cm) Height

.5 mm Pb equivalent acrylic window

Dimensions: 27.6” (70 cm) Width x 37.4” (95 cm) Height (adjustable)

Dimensions with screen lowered:

29.9” (76 cm) Width x 46.5” (118 cm) Height

Dimensions with screen raised:

29.9” (76 cm) Width x 74.4” (189 cm) Height

Includes four sturdy casters, two with brakes

Complete with bar to hold controls

Dimensions: 9.8” (25 cm) x 3.9” (10 cm)
