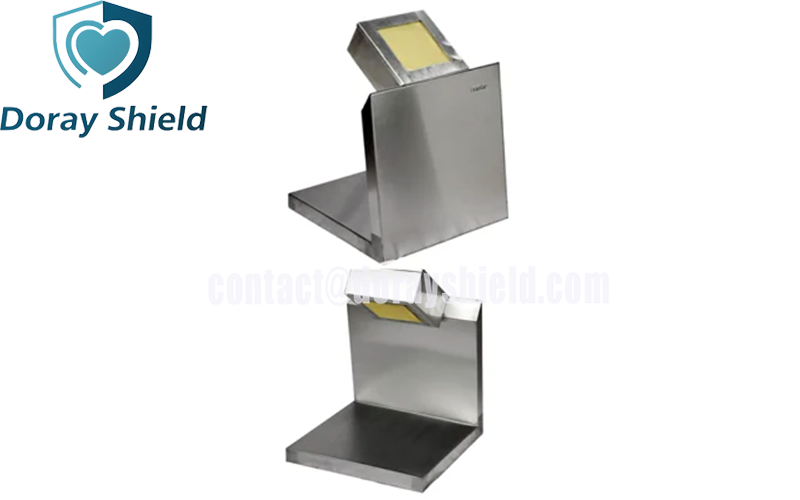

Description Of L-Block Radiation Shielding Station

L-Block Radiation Shielding Station is equipped with a lead observation window with high light transmission and clarity, a mobile storage platform, a lifting device, and a lockable pulley, which can be moved to the designated position according to the needs of doctors and patients, so as to facilitate drug dispensing and injection operation. L-Block Radiation Shielding Station has the advantages of high density, good radiation shielding effect, good impact resistance, strong corrosion resistance, easy installation and cleaning, long service life, and other excellent characteristics, which can be often used in PET, SPET-CT, MR, X-ray examination room, and other nuclear medicine laboratories.

Features Of L-Block Radiation Shielding Station

L-shaped lead shield: the lead thickness of the front wall is 50 mm (2″), and the lead thickness of the base is 25 mm (1″), forming a three-sided surround protection.

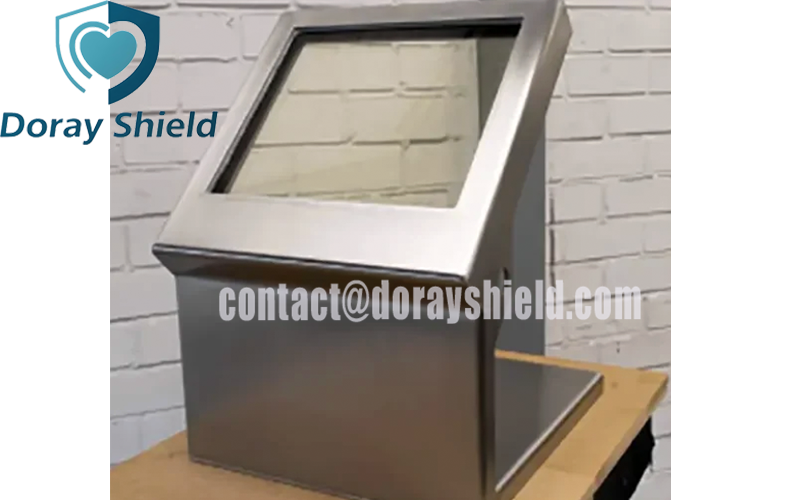

Large field of view lead glass: 8″×8″×4″ adjustable angle lead glass window, high light transmittance, convenient for close-range operation and observation.

Integrated dose calibrator protection: The calibration chamber slot is reserved on the top, eliminating the need for additional interlocking lead rings and saving space.

Hexagonal groove platform: The tabletop is equipped with a hexagonal hole, and the dose pig with a hexagonal bottom can be loaded and unloaded with one hand, reducing hand exposure.

Stable movement: Four Ø80 mm casters (two wheels with brakes), silent movement, locked after positioning without shaking.

Applications Of L-Block Radiation Shielding Station

PET/CT center: used for receiving, packaging, and dose calibration of high-energy radionuclides such as 18F-FDG.

Mobile nuclear medicine laboratory: used as a core shielded workstation in the vehicle-mounted thermal laboratory, taking into account transportation stability.

Nuclear pharmacy and radiopharmaceutical production facilities: provide a safe handling platform for operators to handle high-dose radiopharmaceuticals at close range.

Specifications Of L-Block Radiation Shielding Station
