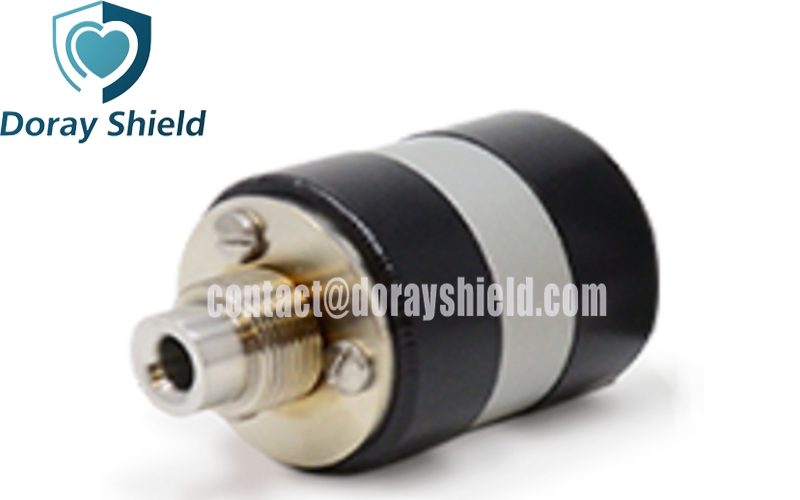

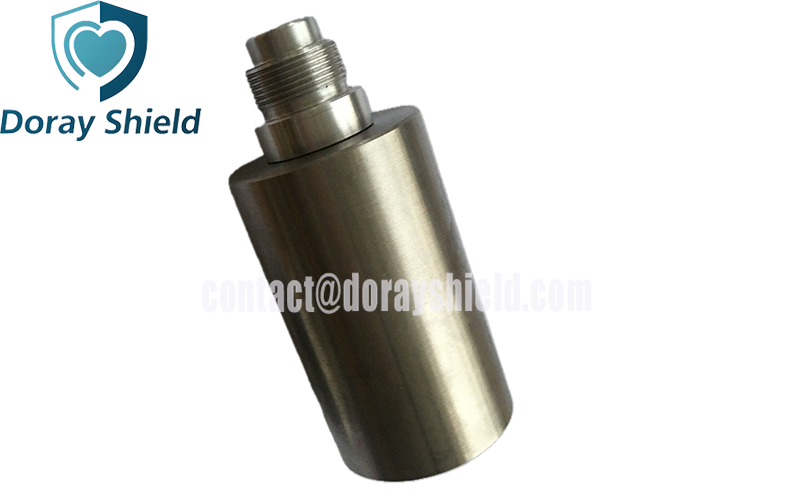

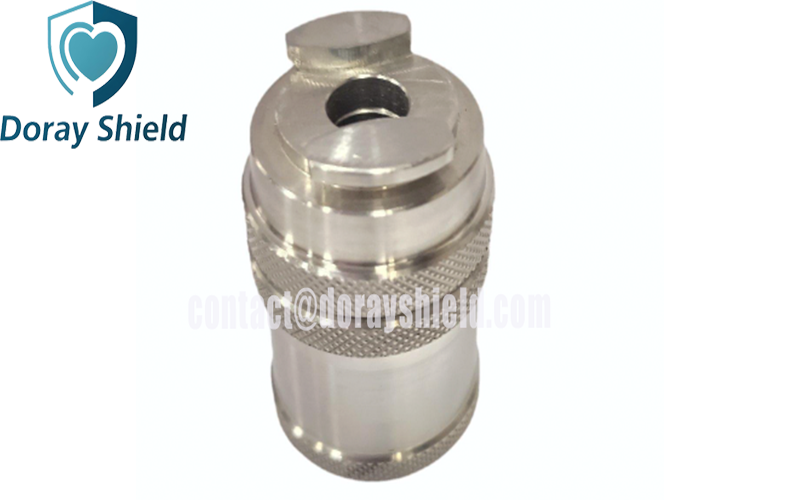

Dorayshield produces tungsten heavy metal alloy products as per your request. Tungsten alloy Collimators contain and direct the beam of radiation during exposure. This results in improved radiograph quality and safer operating conditions. Tungsten alloy panoramic collimators consist of a stainless steel housing containing two tungsten inserts. Tungsten directional collimators direct the radiation beam from a side port as a 60° conical side throw. Collimators contain and direct the beam of radiation during exposure. A wide range of collimators has been developed to meet the variety of applications and techniques used. TCN846 Tungsten Collimator is one of them.
High density
Good machinability
Good mechanical properties
High modulus of elasticity
Harmless to the health and environment
High absorption capacity against χ-rays and γ-rays
Weight: 4.3 lb. (1.95 kg)
Dimensions: Length: 3.75 in, Diameter: 2.25 in
Attentuation: Co-60: 0.18 Ir-192: 0.0045
Half Value Layers: Ir-192: 7.80 Co-60: 2.40
Beam Size: 20° x 360° panoramic.
