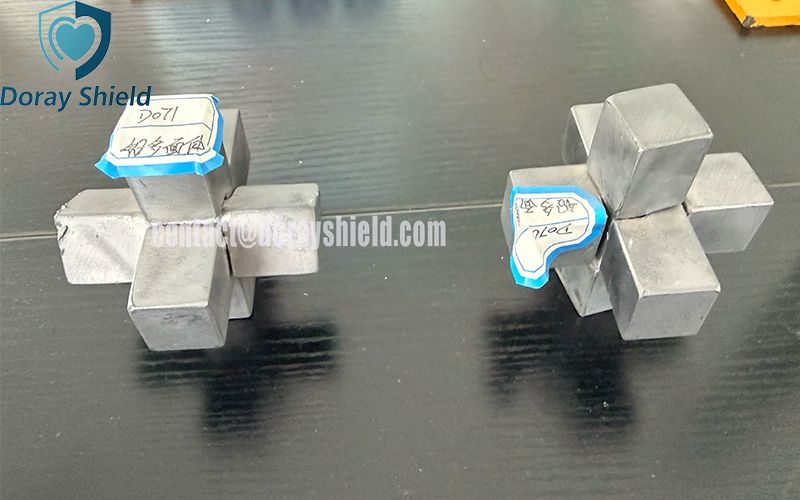

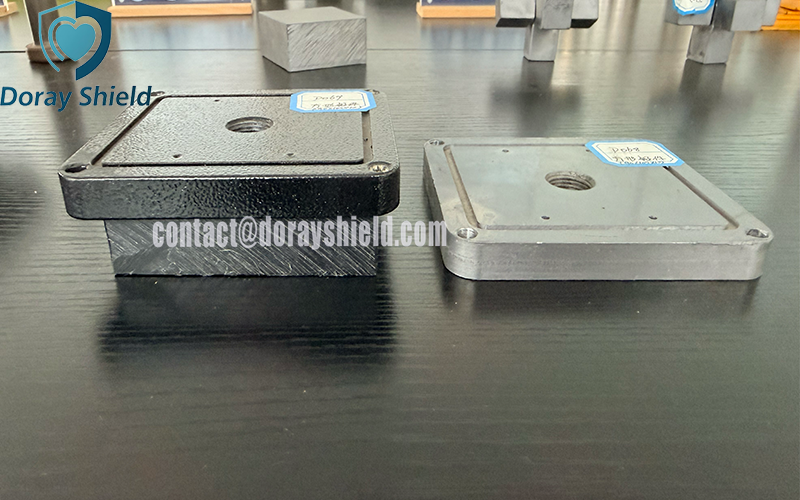

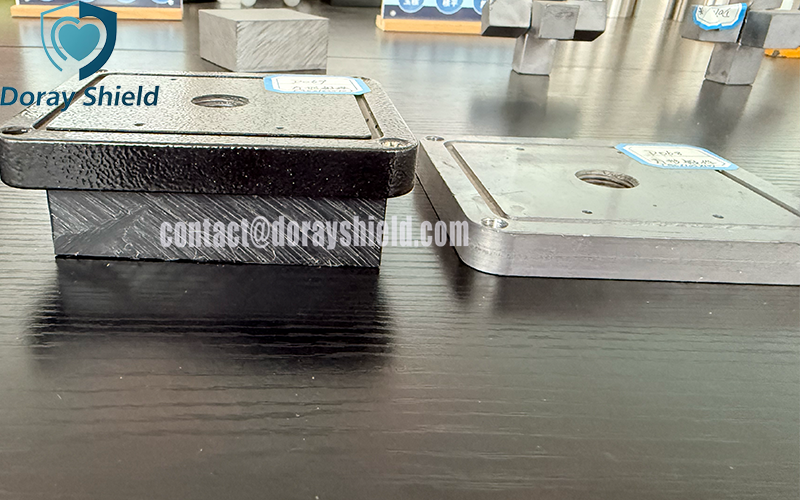

Description of Custom Lead Shielding Castings

Custom lead shielding castings are radiation protection components manufactured via precision casting processes, leveraging the physical properties of lead (Pb)—specifically its high density and high atomic number. Serving as a core material for shielding against ionizing radiation (such as X-rays and gamma rays), these castings are widely used in fields including medical imaging equipment, industrial non-destructive testing, nuclear facilities, and scientific research laboratories. Compared to traditional rolled lead sheets, custom castings can be tailored to specific equipment configurations—enabling complex geometries, precise thicknesses, and integrated designs—to provide efficient, stable, and aesthetically pleasing radiation protection solutions.

Advantages of Customized Manufacturing

Structural Adaptability: Supports non-standard customization based on customer-provided drawings or physical models. Whether for curved shields, irregularly shaped counterweights, or integrated shielding housings, components can be cast as a single unit to perfectly match the equipment's contours.

Consistent Quality: Utilizes automated lead-shielding casting systems or precision sand casting technology. Continuous casting in a sealed environment effectively prevents defects such as structural discontinuities, slag inclusions, and porosity, ensuring a dense, uniform internal structure and consistent shielding performance.

Versatile Surface Finishing: Surfaces can undergo polishing, spraying, coating, or lamination with stainless steel or aluminum alloy shells. These treatments not only enhance corrosion resistance—making the components suitable for humid or variable environments—but also improve overall aesthetics and durability.

Customization Process and Service Standards

Requirement Consultation: The client provides specifications regarding radiation type, energy level, required shielding equivalence (mmPb), installation space dimensions, and the operating environment.

Solution Design: The engineering team calculates the required lead equivalence based on the provided data, designs the casting structure, and determines whether a composite steel structure is needed for added strength.

Mold Making and Casting: Specialized molds are fabricated, and high-precision casting processes are employed; cooling rates are strictly controlled to ensure a uniform grain structure.

Post-processing and Quality Inspection: Components undergo deburring and anti-corrosion surface treatment, followed by density testing, visual inspection, and necessary radiation penetration tests to ensure compliance with national standards.

Delivery and Installation Guidance: The finished product and necessary installation accessories (e.g., screws, brackets) are supplied, accompanied by professional recommendations for installation and maintenance.
