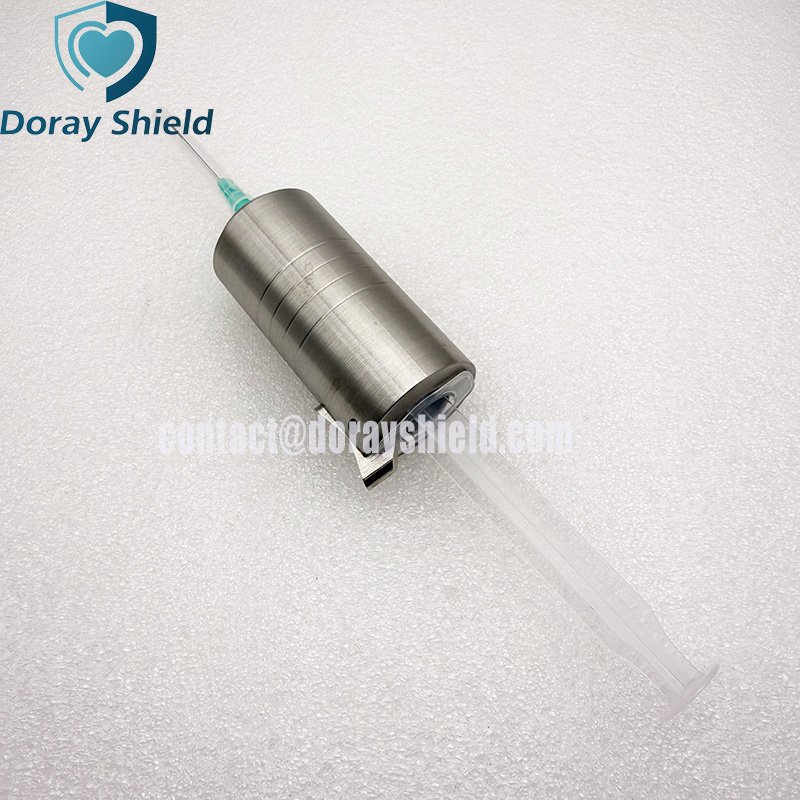

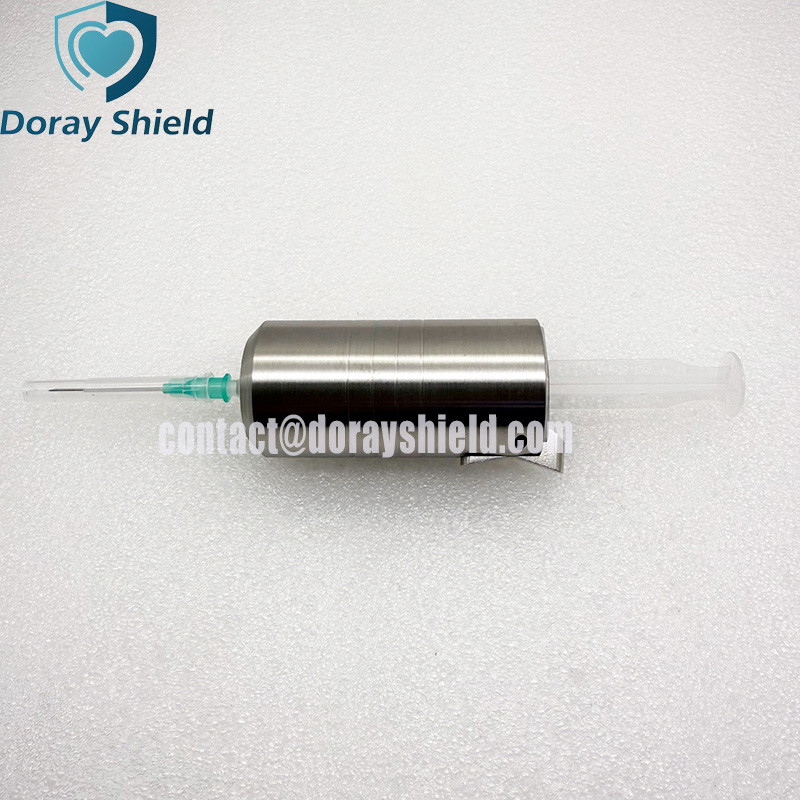

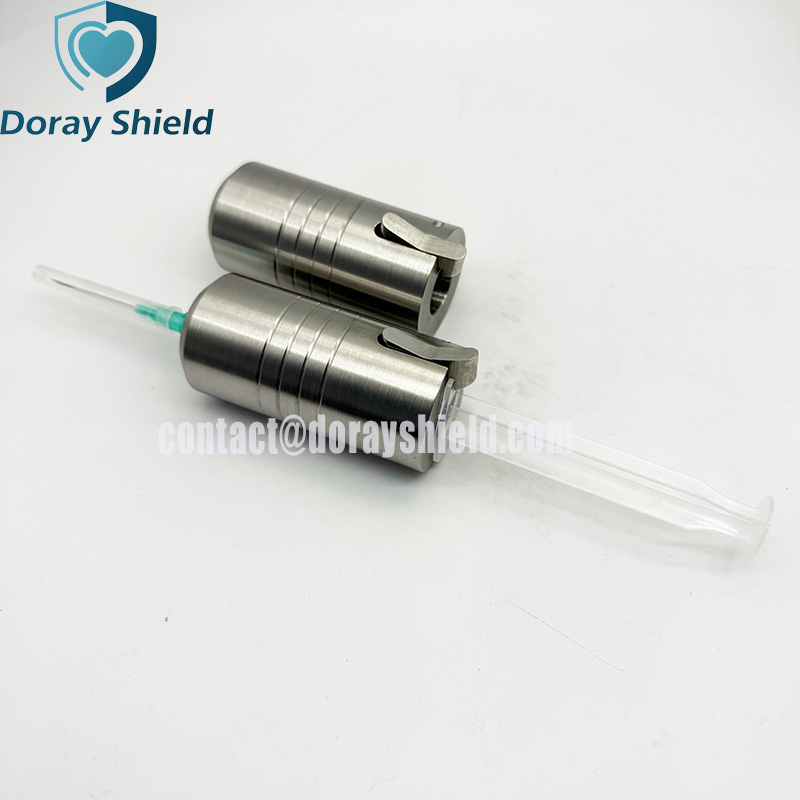

10ml Clip-lock Tungsten Injection Shields are a commonly used protective container in the process of injection operation in nuclear medicine treatment, which is mainly composed of a tungsten alloy tube body and embedded lead observation glass. They have the advantages of high density, good environmental protection, easy use, wear resistance, impact resistance, high-level radiation shielding, and low maintenance cost. 10ml Clip-lock Tungsten Injection Shields with different shielding thicknesses and levels can be selected according to the amount of shielding radiation required. Safe flange locking design provides higher protection with minimal operation. When the syringe is inserted, it can be locked and positioned with one hand, and the syringe can be automatically disengaged by pressing the button. The whole process is not only convenient to operate, but also avoids too much contact with radiopharmaceuticals.
Material | 95WNiFe |
Technique | Pressing, Sintering, Infiltration, Annealing, Rolling |
Shield Thickness | Tungsten(8mm) |
Density | 17.0g/cm3-18.5g/cm3 |
Tensile Strength | 580-950 MPa |
Surface | Polished, Oxide, Plating, Brushing, Blackened |
Standard | ASTM B702, DIN, GB |
Certification | ISO 9001 |
